| Max Wood Width | 4x4 Inch / 6x6 inch / Customize |
| Power Consumption | 13KW ( 3 Phase ) |
| Weight | 1500 Kg |
| Spindle Specification | 3.5 kW / 4.5 kW / 6 kW |
| Position Accuracy | 0.05 mm (50 Micron) |

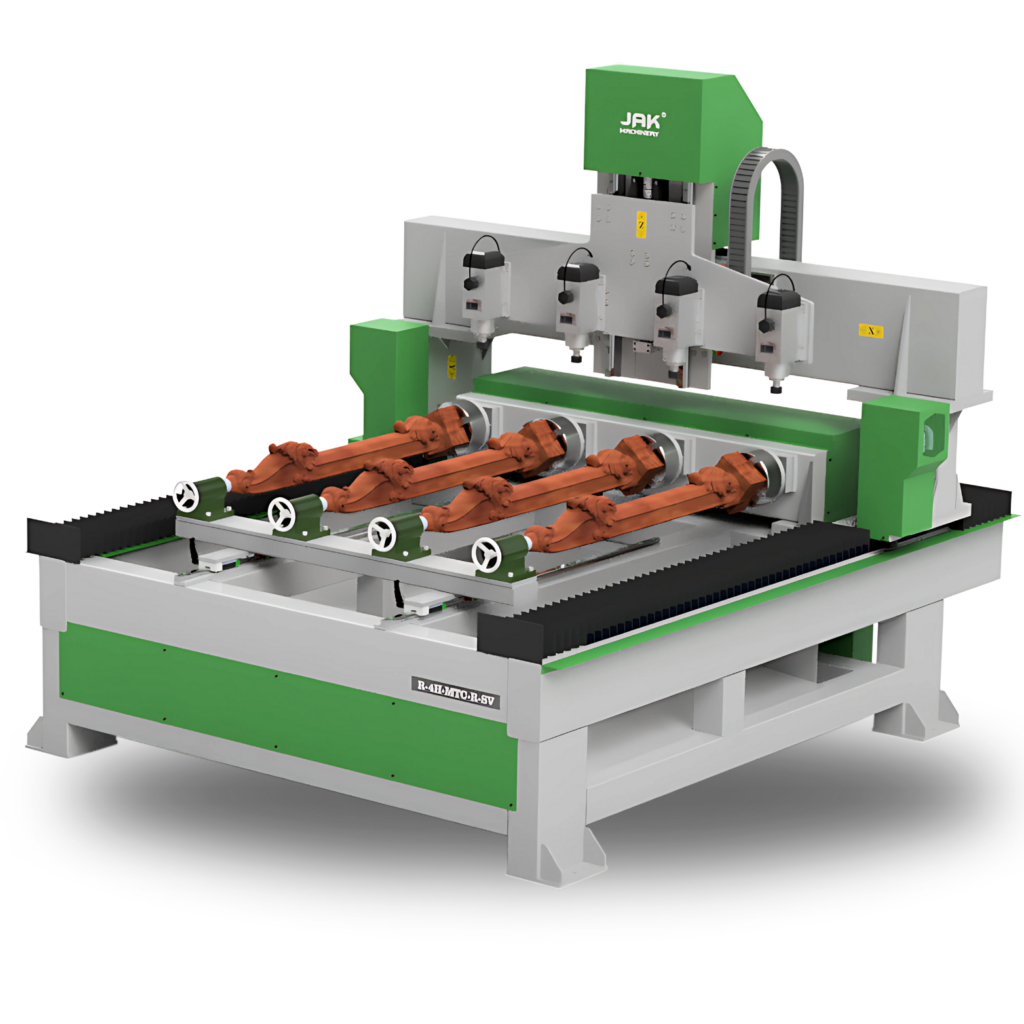

Machine can accept 4 axis gcode to run all X, Y Z and A axis all together. This enable use to make carving operation on flat and circular surface. Some special type of pillar can do only with simultaneous 4 Axis capability.
When you start the machine, machine set the X and Z Origin Automatically.
If this facility is not there then you must set the origin manually which can never be accurate.
Machine will stop Automatically if any Servo motor and spindle motor overload its rated capacity.
This feature will help you to avoided savior mechanical damage because of collision.
Yellow Light indicates Main Power Supply is Applied.
Green Light Indicates Machine Power is On.
Red Light indicates Machine is at Emergency Stop mode.
Automatic lubrication systems consist of a central reservoir supplying lubricant through distribution lines to directly slider blocks.
Machine can be operated remotely using any remote software like Anydesk / Ultraviewer. This is very nice feature that helps for training and trouble shooting.
User Friendly Interface : All axis positions, sensors and speed parameter accesible in one screen
Realtime Simulation : graphical illustration of toolpath
Realtime Speed Changing : You can change moving speed and RPM anytime during the production
Timelaps and counter : Realtime showing production and and production quantity.
Data management : you will get 60 GB Free space for your design management
Online Health Check up : we can troubleshoot the problem online, this can give immediate service and no need on-site engineer
